As electronic paper (ePaper) technologies continue to diversify, Cholesteric Liquid Crystal Display (ChLCD) ePaper stands out as a distinctive reflective display solution that combines bistability, color capability, and visual comfort. Unlike electrophoretic ePaper technologies that rely on charged particle movement, ChLCD ePaper is based on the optical properties of cholesteric liquid crystals, offering a different technical path toward low-power, eye-friendly, and full-color reflective displays.
What Is Cholesteric Liquid Crystal (ChLCD) ePaper Technology?
ChLCD ePaper utilizes cholesteric (cholesterol-based) liquid crystal materials, which form a naturally occurring helical molecular structure. This structure gives cholesteric liquid crystals two stable molecular alignment states: a planar state and a focal conic (point-like) state. Once established, either state can be maintained without continuous power input, a property known as bistability.
This bistable nature is fundamental to ChLCD ePaper. Unlike conventional LCDs that require constant power and backlighting to sustain images, ChLCD displays maintain their visual state using ambient light alone. The display operates as a reflective system, meaning it relies on environmental light rather than emitting light from a backlight source.
How ChLCD Produces Images Using Light Reflection
The image formation mechanism of ChLCD ePaper is based on polarized light reflection and transmission. Under different applied voltages, cholesteric liquid crystal molecules rotate polarized light in different ways, resulting in either a reflective or transmissive optical state.
In the reflective state, the helical structure selectively reflects specific wavelengths of light, making the pixel visible to the viewer.
In the transparent or transmissive state, light passes through the liquid crystal layer without being reflected, causing the pixel to appear dark or neutral when backed by an absorptive layer.
By switching between these two polarization states, ChLCD ePaper creates visible contrast. Because the molecules remain stable once switched, no additional energy is required to hold the image, enabling extremely low power consumption.
Why ChLCD Is Naturally Suited for Full-Color Displays
One of the most important strengths of cholesteric liquid crystal ePaper is its intrinsic compatibility with color display. Color generation is achieved by introducing chiral dopants with different helical pitch lengths, which determine the wavelength of light reflected by the liquid crystal layer. By carefully tuning these pitches, ChLCD can selectively reflect red, green, and blue (RGB) wavelengths.
To achieve full-color output, ChLCD technology supports both vertical and horizontal color mixing approaches. In industrial implementations, vertical RGB stacking is commonly used, where multiple cholesteric layers—each reflecting a specific color—are stacked to form a full-color pixel. This approach allows ChLCD ePaper to deliver vibrant colors without relying on traditional RGB color filters.
Because the display is reflective and does not require backlighting, ChLCD panels avoid flicker and excessive blue light emission, contributing to visual comfort and reduced eye strain.
Key Advantages of ChLCD ePaper Compared to Conventional LCDs
When compared with conventional LCD technology, ChLCD ePaper offers several compelling advantages:
- Ultra-low power consumption due to bistability and the absence of a backlight
- Eye-friendly viewing through reflective display behavior similar to printed paper
- Slim and lightweight panel structure, suitable for large-area installations
- Full-color capability without emissive light sources
- Flicker-free display, improving long-term viewing comfort
These characteristics make ChLCD ePaper particularly suitable for applications where displays remain static for long periods but must remain clearly visible in bright environments.
How ChLCD Fits into the ePaper Technology Landscape
ChLCD ePaper complements rather than replaces other ePaper technologies. While electrophoretic microcapsule and microcup ePaper excel in black-and-white and multi-color static displays, and electrowetting or TIR ePaper focus on speed and motion, ChLCD occupies a unique position at the intersection of bistability and full-color reflection.

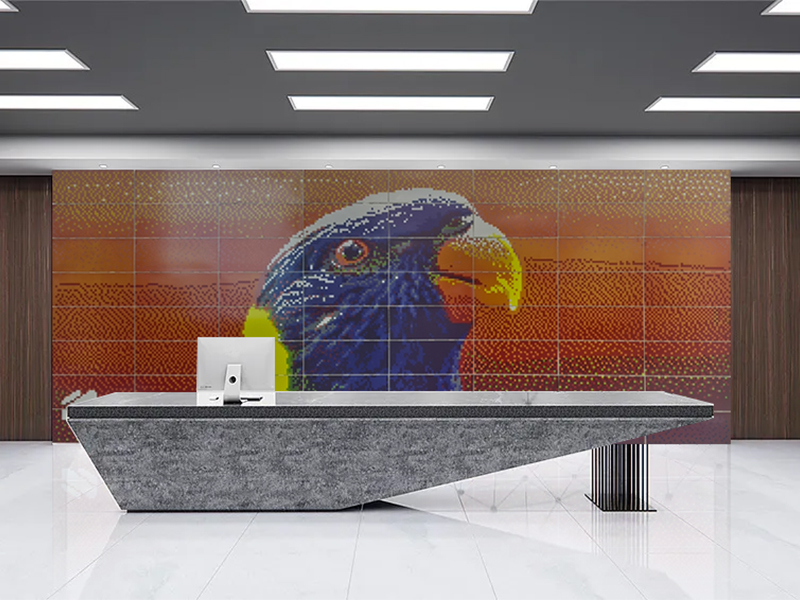

This makes ChLCD especially attractive for large-format commercial signage, information boards, and public displays, where energy efficiency, color visibility, and environmental adaptability are critical. Because ChLCD does not rely on backlighting, it performs exceptionally well in high-ambient-light conditions such as shopping malls, transportation hubs, and outdoor-adjacent spaces.
Current Industrial Adoption and Manufacturing Progress
At present, ChLCD ePaper has entered practical mass production, with representative manufacturers in Taiwan leading the commercialization of vertical RGB stacked ChLCD panels. These developments demonstrate that cholesteric liquid crystal ePaper is no longer confined to laboratory research but has matured into a viable industrial display solution.
As manufacturing processes continue to improve, ChLCD panels are expected to scale further in size, resolution, and color uniformity, supporting a wider range of commercial and professional applications.
Why ChLCD Matters for Sustainable Display Applications
From a sustainability perspective, ChLCD ePaper aligns closely with global goals for energy efficiency and low-carbon technology. By eliminating backlights and minimizing power usage, ChLCD displays significantly reduce operational energy consumption over their lifecycle. When used to replace printed posters or powered digital signage, they contribute to reduced material waste and lower carbon emissions.
This combination of sustainability, readability, and color performance positions ChLCD ePaper as a key technology in the transition from traditional print and power-intensive screens to smarter, greener display solutions.
SEEKINK and Electrophoretic ePaper Applications
Although ChLCD ePaper provides a sustainable, reflective display approach, its relatively lower contrast and limited dynamic performance can pose challenges in real-world deployments, where electrophoretic display continues to deliver more consistent readability and commercial reliability. By leveraging advanced electrophoretic ePaper technologies, SEEKINK delivers reliable e-ink display solution that combine visual clarity, low power consumption, and long-term stability. Through continuous innovation, SEEKINK helps businesses and public spaces adopt next-generation ePaper signage that is both visually impactful and environmentally responsible.
