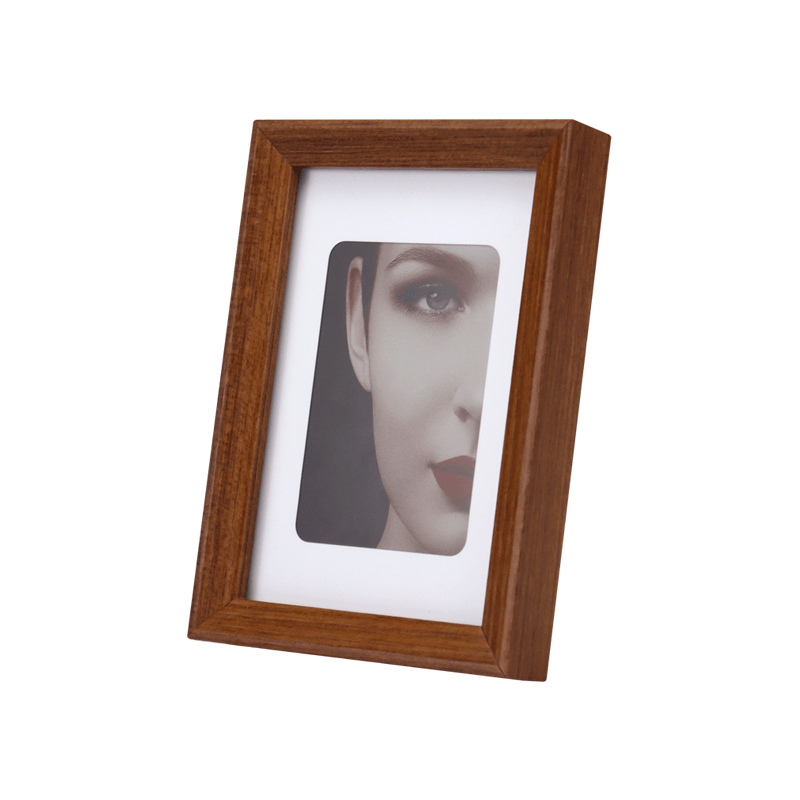

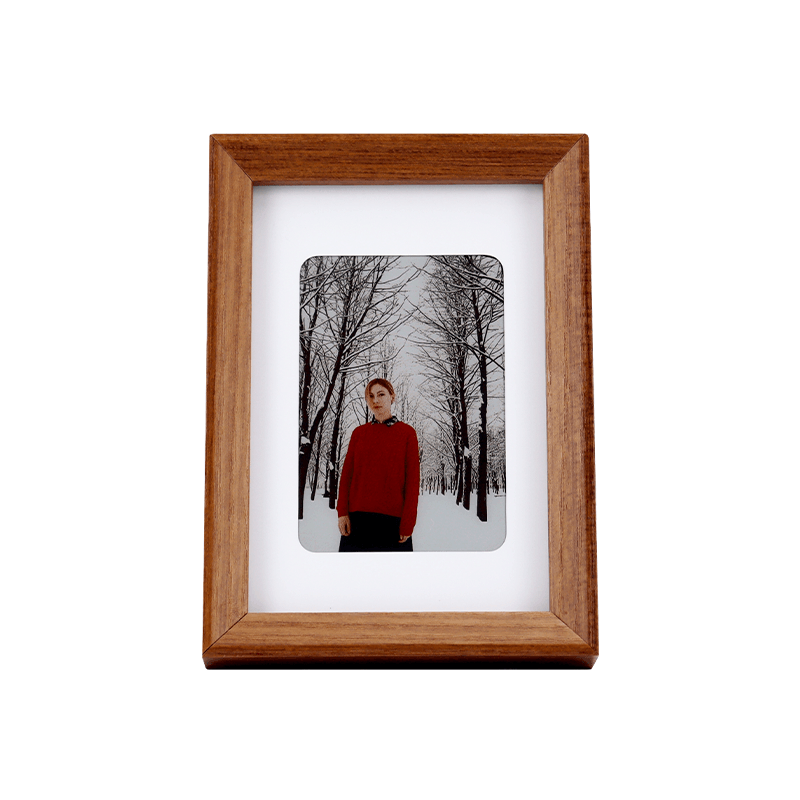

T040E5HE 4-inch 4-color E Ink Digital Photo Frame
T040E5HE 4-inch 4-color E-ink Digital Photo Frame
Why do electronic brands/distributors/dealers/wholesalers prefer the SEEKINK’s ePaper photo frame solutions?
- Optional OEM/ODM, Empowering Your Brand Upgrades
- Original EPD module Factory with Strong Innovation Capabilities
- The ability to Integrate Upstream & Downstream Supply Chain Resources
Why choose this 4-color 4-color e ink Digital photo frame?
- Highly Customizable Model
- Mini, Slim & Portable
- 4-Color Retro Visual Experience
- QI Standard Wireless Charging
- Waterproof & Dustproof Design
Is the T040E5HE E Ink Digital Photo Frame Worth It? Let’s Find Out!

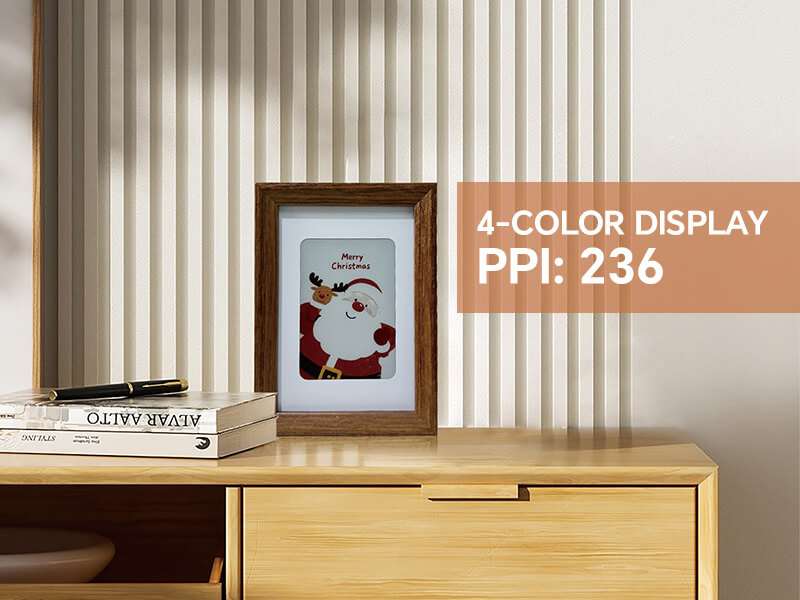

 | 4-color Display with Vivid, High-definition VisualsFeaturing E Ink Spectra 3100, this 4-inch 4-color e-ink photo frame with a resolution of up to 528×768 and 236 PPI, delivers sharp text and image edges, vibrant colors, and a paper-like viewing experience | ||||

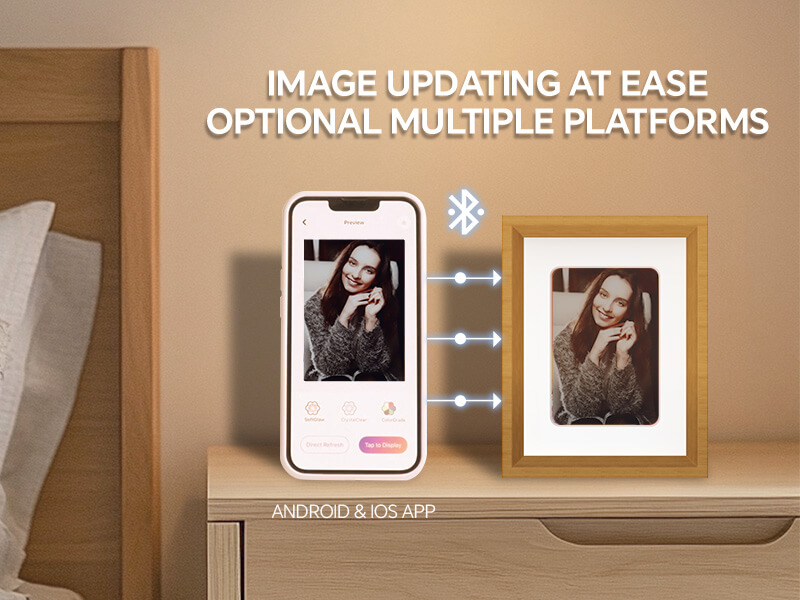

Fast Image Updating, Optional Multiple PlatformsUpdating images with a single tap using a mobile phone app, available for both Android and iOS. Carousel mode and schedule automatic image rotations are acceptable, allowing multiple images to switch automatically at your specified times. It’s simple to use – even seniors and children can master it quickly.
|  | ||||
 | Qi Wireless Charging, Eco-friendly with Low-Power OperationCompliant with the Qi wireless charging standard, this epaper photo frame can be charged as soon as you place it on the pad, eliminating the need for cables. It features a built-in 100mAh rechargeable lithium battery that lasts up to 2 months on a full charge (based on changing the image 5 times a day), and operates with low power consumption for eco-friendly and energy-efficient use. | ||||

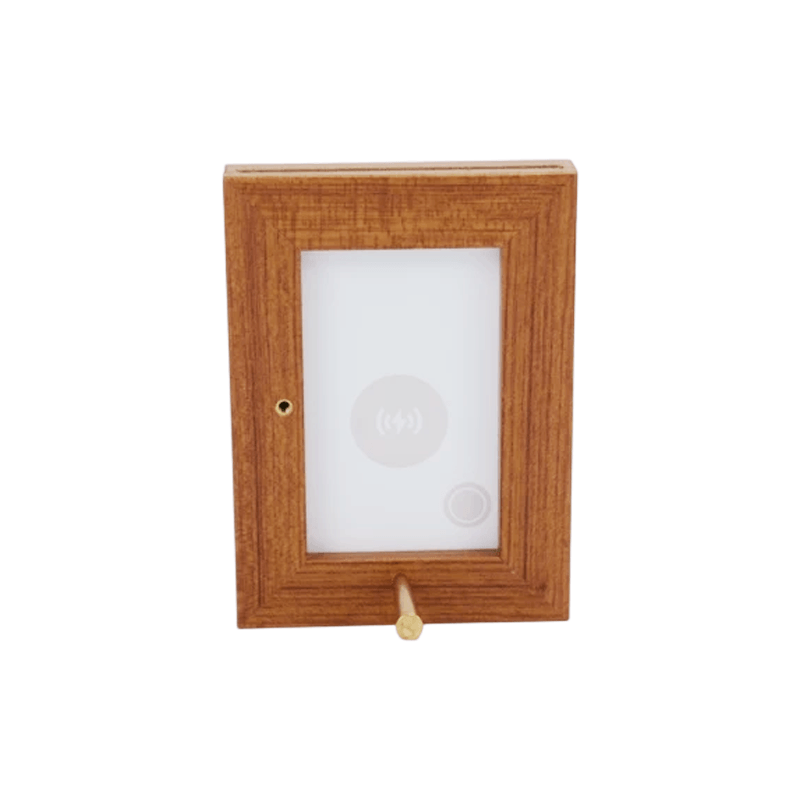

Cold-pressed Construction, High Resistance ProtectionFeaturing a wood-grain outer frame and a white inner frame with PVC material, this e-ink photo frame undergoes a cold-pressed process to deliver a smooth, refined texture and outstanding quality. Water- and dust-resistant protection to guard against accidents. |  | ||||
 | Lightweight, sleek, and compact – easy to carry anywhere
| ||||
Application Scenario Case Study-T040E5HE E Ink Photo Frame | |||||
 |  |  | |||
Why is SeekInk capable of supporting your e-ink photo frame project?Based on SeekInk’s advanced waveform technology, the reliable R&D team, and strong production capacity, we offer comprehensive customization services from modules to complete products. | |||||
 |  |  | |||
SeekInk’s Flexible Collaboration Models
We offer flexible collaboration options from modules to complete devices, enabling faster development and scalable e-ink picture frame solutions.
EPD Module Solution: EPD display modules with integration support, allowing full control over product design and development.
Demo Kit Solution: Complete hardware kit (mainboard, display, battery, etc.) with development resources for rapid product launch.
ODM & OEM Solution: Full device design and manufacturing support, ensuring quality, scalability, and faster commercialization.
Technical Data Specification of T040E5HE E Ink Digital Photo Frame
Display | Size | Color options |
4-inch | 4-Color (Black, White, Red, Yellow) | |
Display technology | PPI | |
E Ink Spectra 3100 | 236 | |
Resolution | ||
| 528 x 768 | ||
Connectivity
| WiFi | BLUETOOTH |
N/A | Support Bluetooth 5.1 | |
NFC | Device required | |
Support | Bluetooth station; Android & IOS | |
| Cloud server | External storage | |
| Support | 1MB | |
Software | Supported image formats |
|
JPG、BMP、PNG |
| |
| Refresh Mode | Refresh Mode 1 | Refresh Mode 2 |
| Refresh by phone APP: The best transmission distance between phones and devices is within 5m | Refresh by PC: The device is connected to a Bluetooth base station, and the computer controls the Bluetooth base station to transmit images; The best transmission distance between the device and the base station is within 15m | |
Structure
| Shell Material |
|
ABS+PC |
| |
Frame Size | Appearance | |
| 104×142×21 mm | Black + White Lens | |
Internal Size | Material | |
| 89×127×2.9mm | PVC | |
| Net Weight | Case Color | |
| Approx. 0.15kg | Frame: wood grain color Internal: white | |
| Keys | Material | |
| Function button ×1, press the button to update the image | PVC | |
Battery | Material | Capacity |
Li-On rechargeable battery | 100 mAh | |
Charging method | Battery life | |
Qi Standard Wireless Charging Protocol | 2-month Battery life | |
Operating Environment | Storage temperature | Operating temperature |
-25℃ ~60℃ | 0℃ ~ 50℃ | |
Humidity |
| |
45%-70% |
| |
| Operating system | Phone operating system | Server operating system |
Android (Version 8.0 and above), IOS | Android (Version 8.0 and above) |
T040E5HE E Ink Photo Frame FAQ
Q1. What partnership models do you support?
We offer flexible collaboration options, including EPD module supply, demo kit solutions, and full ODM/OEM services. This allows you to choose the level of integration that best fits your e-ink photo frame strategy and development capabilities.
Q2. What kind of content can be displayed?
The 4-inch e-ink photo frame supports displaying photos, digital artwork, branded content, promotional visuals, and curated image collections.
Q3. How are images updated on these mini e-ink display photo frames?
Content can be updated via mobile app or PC (remote wireless updates), providing flexible content management for different use cases.
Q4. How long does the battery last?
With a 100mAh battery and ultra-low power consumption, the e-ink digital photo frame can operate for months on a single charge. Typical usage (5 times per day) with a full charge supports 2 months.
Q6. What industries or applications is this e-paper color photo frame suitable for?
It is ideal for smart home devices, digital art displays, retail environments, hospitality spaces, and branded content displays, as well as IoT and content-driven platforms.
Q7. What support do you provide during development?
We provide technical support, integration guidance, and development documentation depending on the cooperation model, helping you bring your e-ink photo frame to market efficiently.
Q8. Can the outer frame be customized?

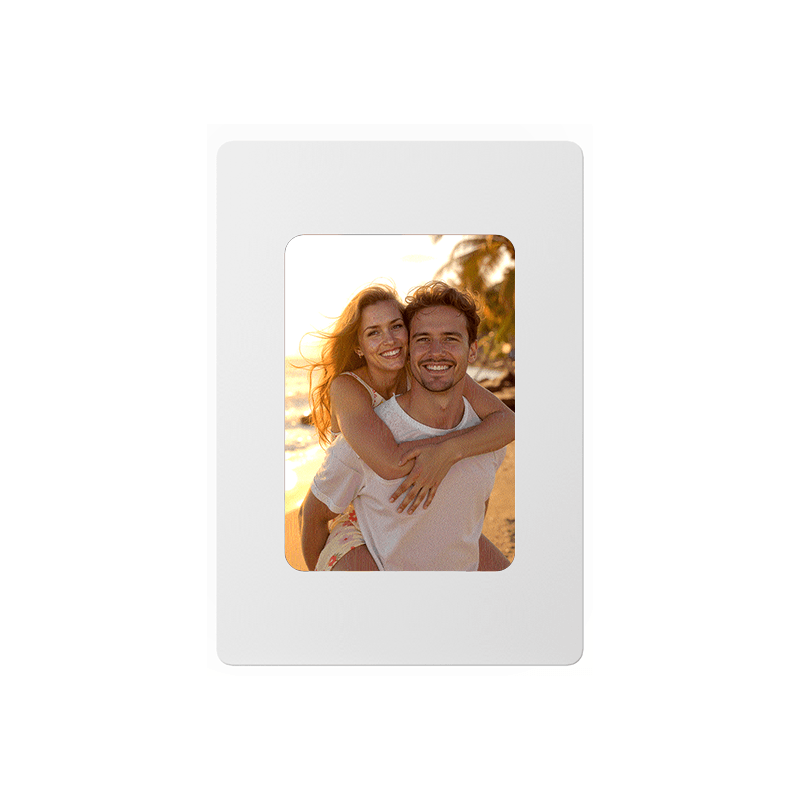

Yes. The modular inner unit allows full flexibility in external design, including materials, colors, and form factors, enabling you to create unique products tailored to your brand.
