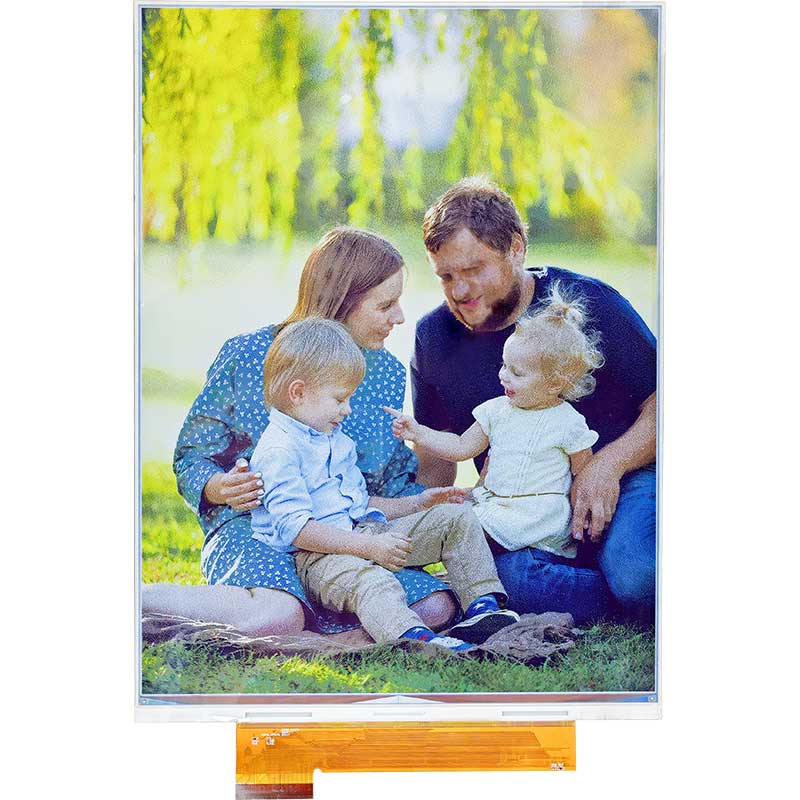

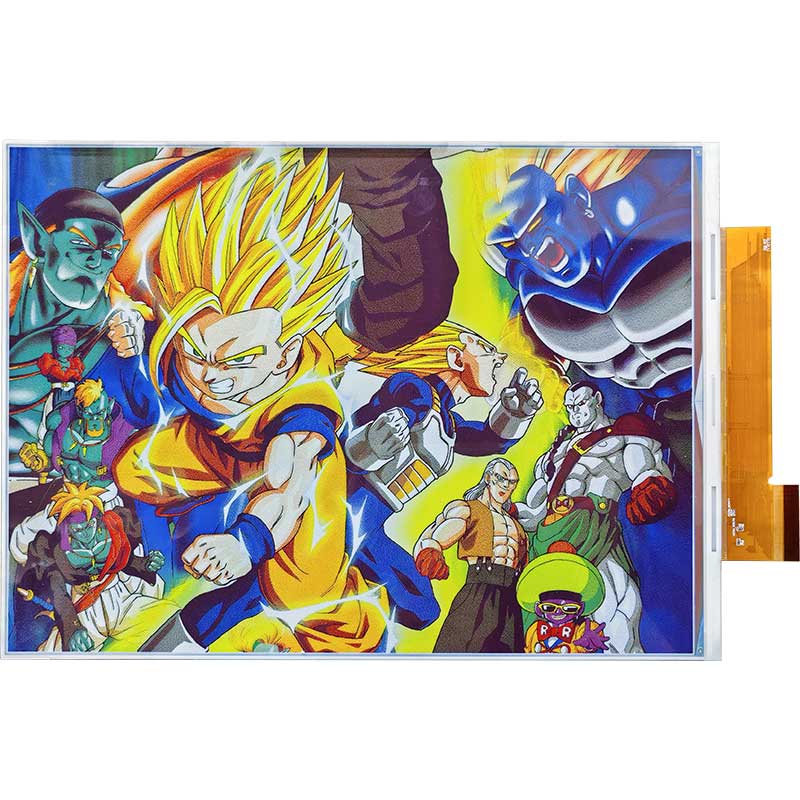

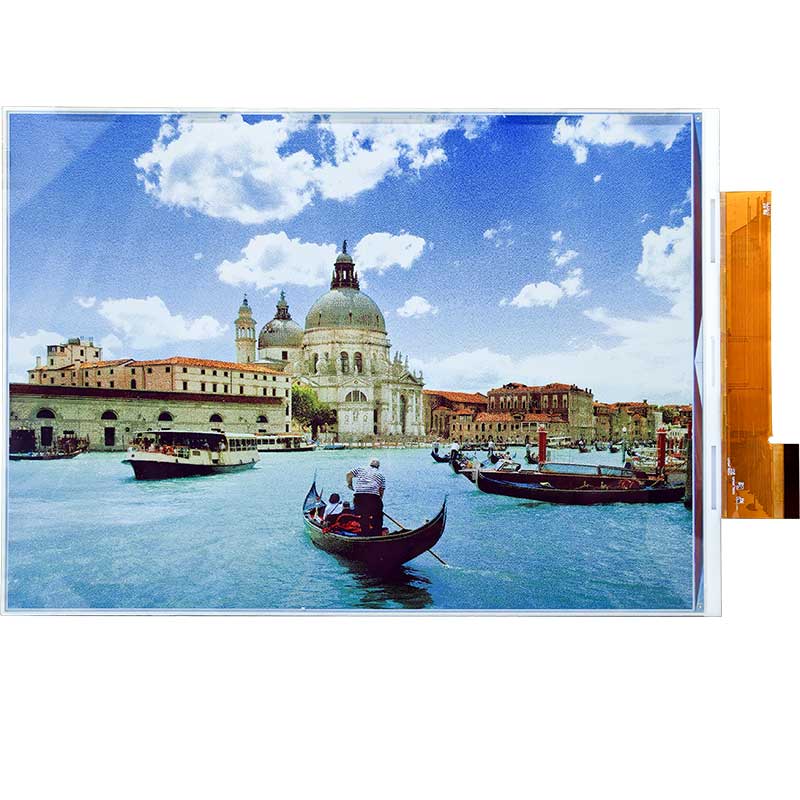

13.3 Inch Colored E ink Display Module
(Spectra 6)

13.3” Colored E ink Display Module

Size

13.3 inch

Resolution

1200 x 1600

Eye-friendly

Protect eyes from blue light

Contrast

High Contrast

Color

Various color options

Wide angle

178° ultra-wide angle

DPI

 150

Energy

Low-power consumption

High-Definition Display

The 13.3-inch colored e ink display module is built on reflective electrophoretic E Ink® Spectra 6 technology with an active matrix TFT backplane. It features a 13.3-inch active area with a high resolution of 1200 × 1600 pixels in a 3:4 aspect ratio, delivering sharp image details and excellent visual clarity. In addition, the optimized pixel density of 150 DPI ensures comfortable readability even at close viewing distances.

Rich Color Performance with Spectra 6 Technology

Powered by E Ink® Spectra 6 technology, the 13.3-inch e-paper display module supports six vivid display colors: Black, White, Red, Yellow, Blue, and Green, delivering high contrast, wide viewing angles, and ultra-low power consumption. Color rendering is achieved through the appropriate display controller and optimized waveform files, ensuring stable color accuracy and consistent image quality across refresh cycles. Its multi-color capability enables clear visual differentiation and engaging content presentation, allowing designers to highlight critical information, branding elements, and visual cues without increasing energy consumption. As a result, the display is well suited for large-format, eye-friendly, and energy-efficient applications.

Energy-Efficient Operation

The 13.3-inch colored e-ink display module enables extended battery life, reliable long-term operation, and stable performance across various environmental conditions. It operates in a pure reflective mode, using ambient light instead of a backlight to deliver excellent visibility while significantly reducing power consumption. Thanks to its bi-stable display technology, the image remains stable without consuming power once the content is refreshed. In addition, the 13.3-inch electrophoretic display supports an ultra-low current deep sleep mode, further minimizing energy usage during idle periods.

High-quality Components

Each 13.3-inch e-paper display module integrates essential components such as gate and source buffers, interface circuits, and timing control logic, which ensures stable performance, fast response, and reliable image quality across different operating conditions.

• Efficient Memory & Color Control: On-chip SRAM and a look-up table (LUT) provide fast data access and accurate waveform and color management.
• Stable Power Management: An integrated oscillator and DC-DC converter maintain stable operation under varying power conditions, while internal VCOM and border control ensure uniform image consistency.
• Flexible Connectivity: The 13.3inch e ink display module supports serial peripheral interface (SPI) and I²C master interface, allowing easy connection with external controllers and sensors.
• Thermal Adaptability: Built-in and external temperature sensors allow the modules to automatically adapt to different thermal environments, ensuring reliable performance and consistent image quality.

13.3 Inch E-Ink Display Module Care & Warnings

1. Adhere to all guidelines to ensure 13.3-inch colored e-ink display module’s longevity and optimal performance.
2. Keep the display flat or mounted on a rigid, curved support. Avoid continual bending along the long axis.
3. Do not touch leaking materials if the display breaks. If contact occurs, wash the area immediately with water and soap.
4. Protect the 13.3-inch EPD module from corrosive gases like acids and alkalis. Avoid exposure to static electricity and harsh conditions.
5. Apply IPA solvent only to the active area and the back of the glass. Do not disassemble this 13.3-inch e-ink modules to prevent damage and void the warranty.
6. Handle the fragile glass carefully, especially the front surfaces. Follow standard practices for handling delicate electronics.

The 13.3-inch e-ink module delivers a paper-like viewing experience with high contrast and zero blue light emission, reducing eye strain during long-term viewing. With a large display screen and rich color performance, it’s ideal for public information displays, dashboards, large photo frames, door signatures, information display terminals, and reader-facing applications. SEEKINK is a pioneer in e-ink solutions, providing comprehensive OEM & ODM services to drive your business forward.

Why is SeekInk capable of supporting your e-ink photo frame project?

Based on SeekInk’s advanced waveform technology, the reliable R&D team, and strong production capacity, we offer comprehensive customization services from modules to complete products.
