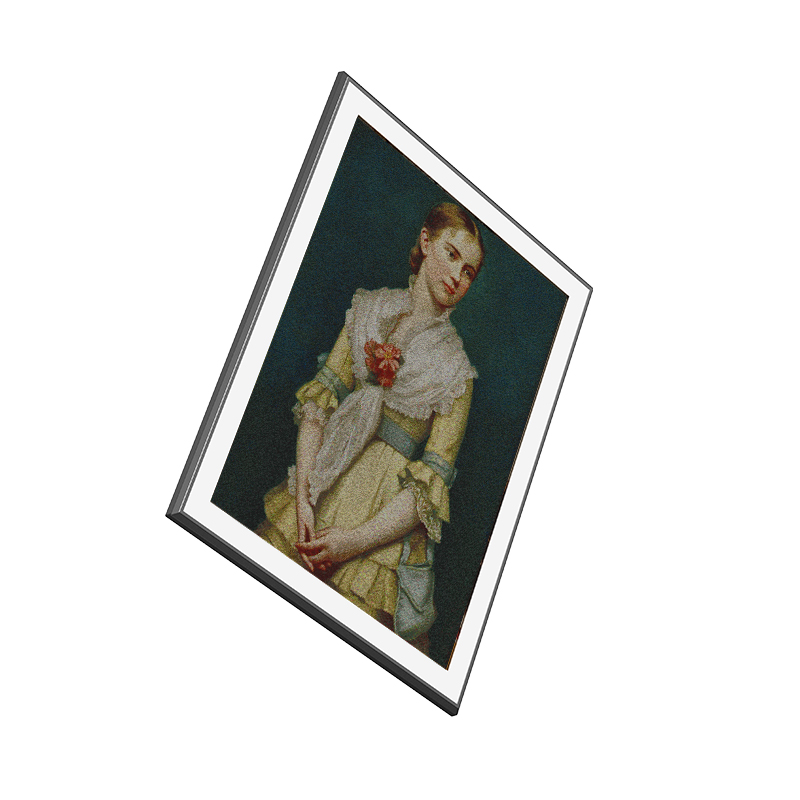

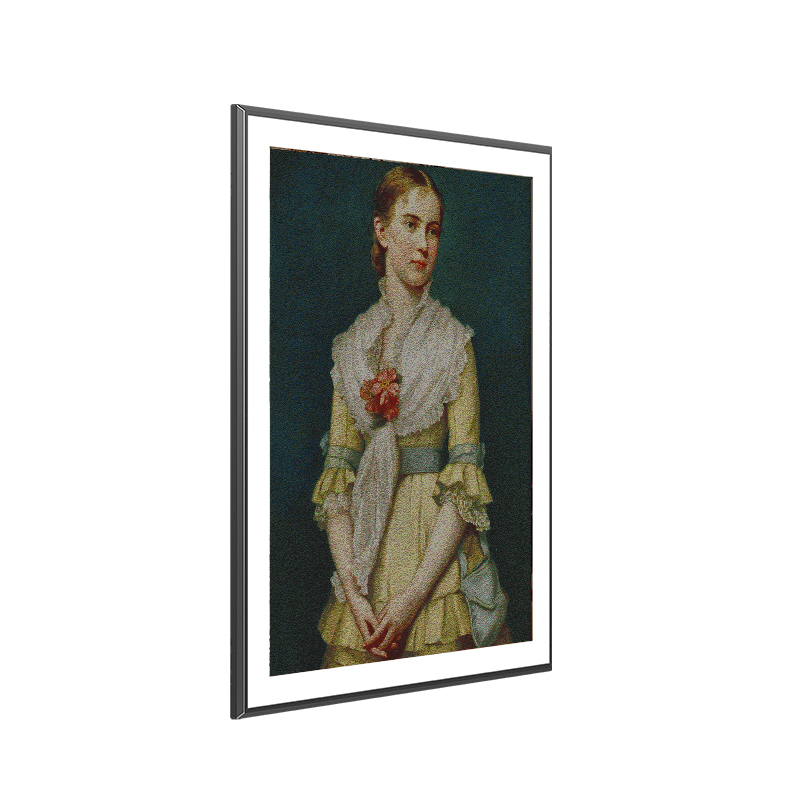

S133E6-F0 E Ink Photo Frame
S133E6-F0 E Ink Photo Frame Features

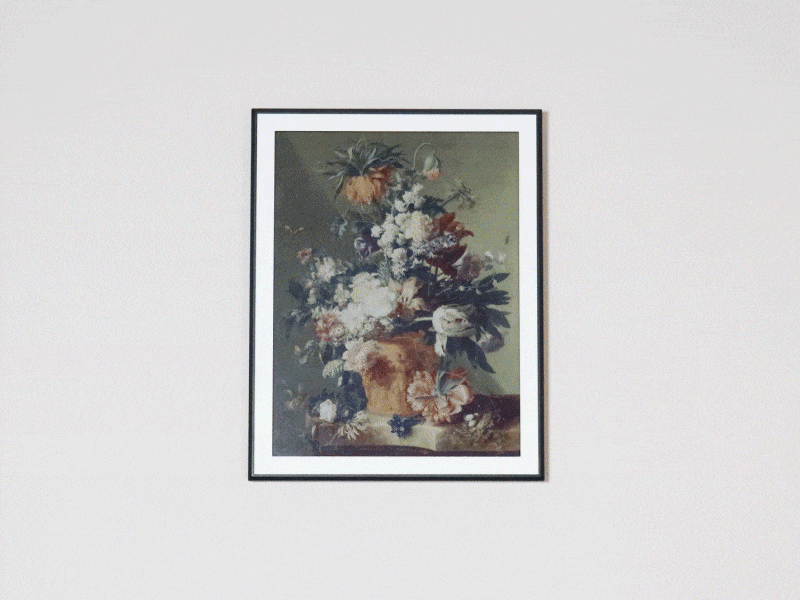

- Highly Customizable Design

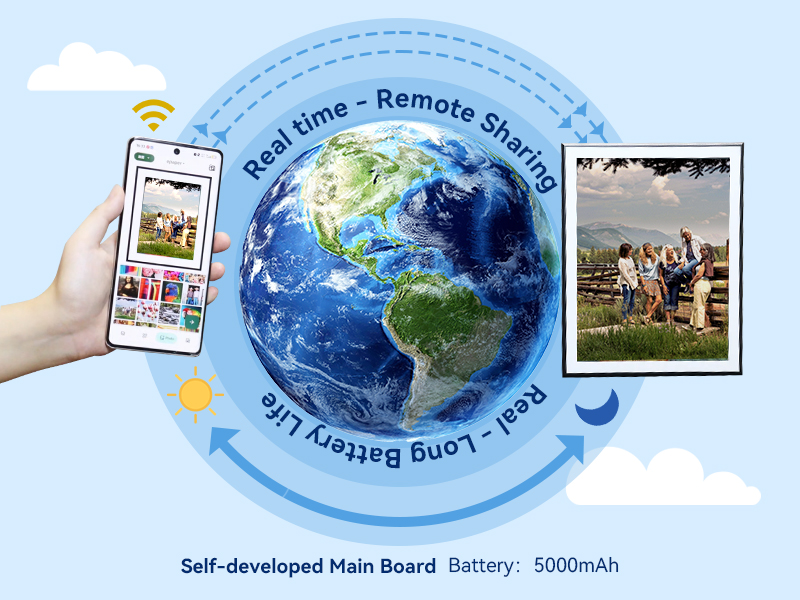

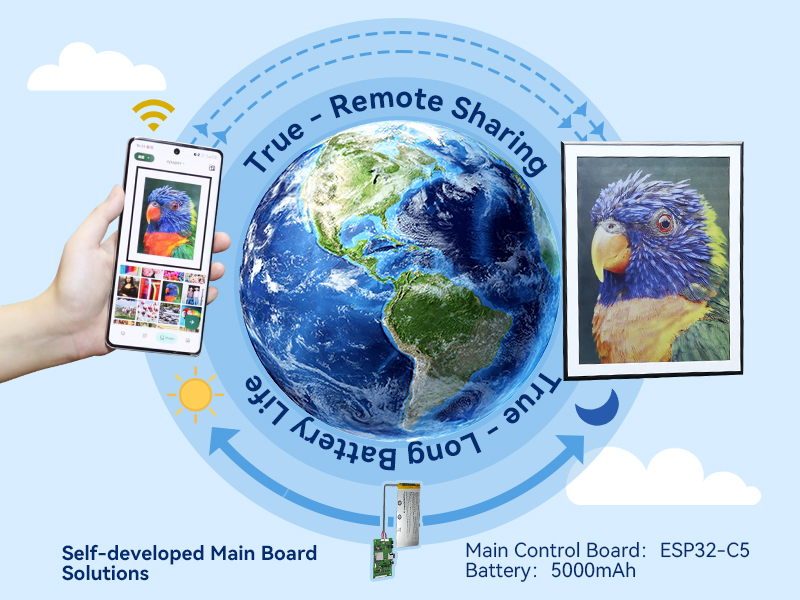

- Remote Sharing with Real-Time Updates

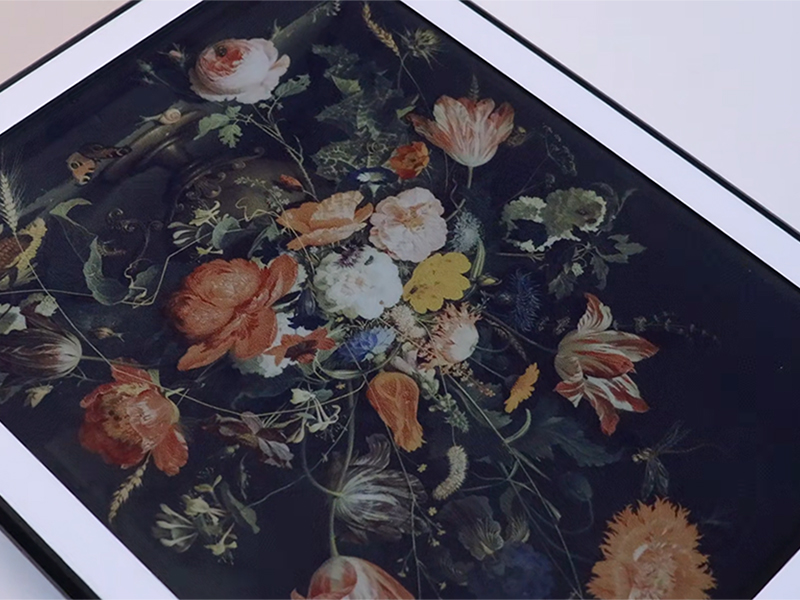

- Image Optimization with the Spectra 6 Technology
- Sleek, Wireless, and Future-Ready
- More Optional Flexible Collaboration Models
S133E6-F0 E Ink Photo Frame Video
Is S133E6-F0 E Ink Photo Frame Worth It? Let’s Find Out!
Technical Data Specification of S133E6-F0 E Ink Photo Frame
Display | Size | Color options |
202.8 x 270.4 mm | Full Color (Red, Yellow, Blue, White, Green, Black) | |
Display technology | DPI | |
E Ink Spectra 6 | 150 | |
Resolution | Aspect ratio | |
1600 x 1200 | 4:3 | |
Hardware
| TF Card | Indicator light |
Support | RGB tri-color light | |
WiFi | BLUETOOTH | |
2.4 GHz & 5 GHz | 5.0 | |
Charging port | Mount Options | |

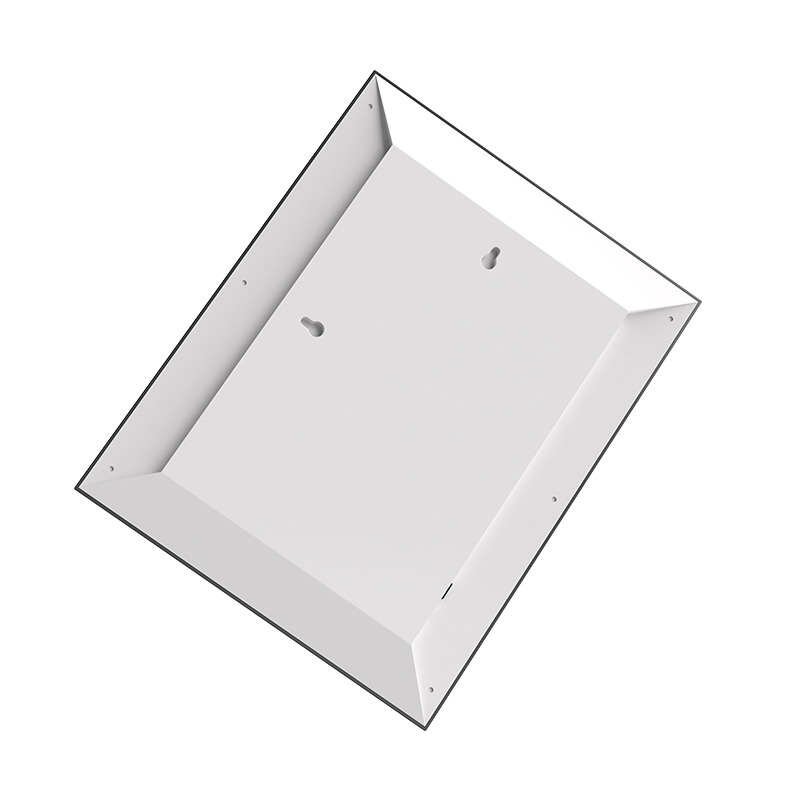

USB TYPE-C | Desktop or Wall-mounted | |
Software | Supported image formats |
|
JPG、BMP、PNG |
| |
| Updating | Refresh Time | Refresh Mode |
15s~30s | By TF Card or By APP | |
Buttons | BUTTON | RESET |
Power on/off Network configuration Status inquiry | Restore settings | |
Structure | Shell Material |
|
ABS+PC |
| |

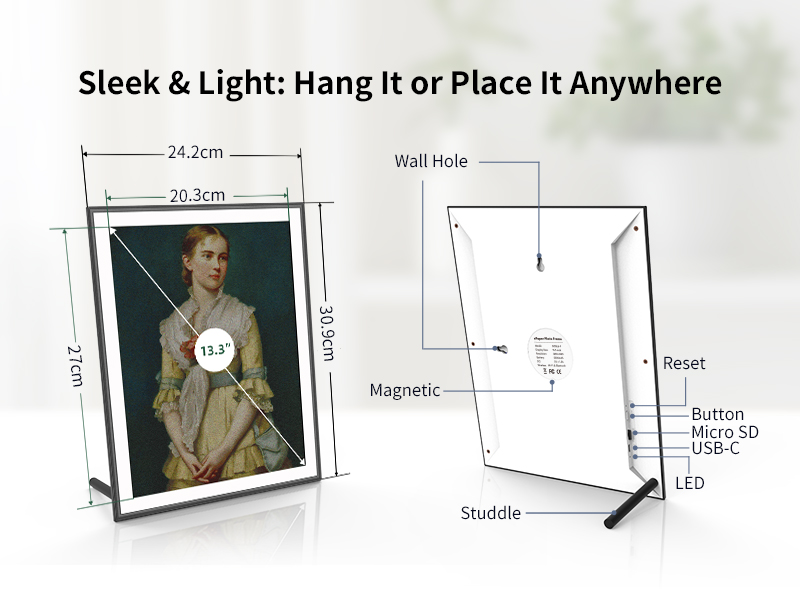

Overall Dimensions | Package Dimensions | |
| 242.1×309.71×16 mm | 410×300×80mm | |
Net Weight | Gross weight | |
| 0.73 KG | 1.18 KG | |
Battery | Material | Capacity |
Built-in Li-ion battery | 5000 MAH | |
Charging Port | Battery run time | |
Type-C (Optional) | 6 Months (Refresh 1 time per day) | |
Operating Environment | Storage temperature | Operating temperature |
-25℃ ~60℃ | 0℃ ~ 50℃ | |
Humidity |
| |
30%~90% |
| |
Operating System | RTOS | |
S133E6-F0 E Ink Photo Frame FAQ
1. How about the capacity of the battery for this e ink photo frame? What is the expected battery life?
For this 13.3″ inner ePaper frame: The battery capacity of this model is 5000 mAh. When it operates 24 hours a day to share a remote screen, casting enabled, and updates one image per day, the standby time can last at least 6 months. We continue optimizing power consumption as well. Enabling Wi-Fi sleep schedules (e.g., turning off Wi-Fi overnight) can significantly extend standby time to over 1 year. If it is used exclusively in local mode, the battery life can last several years.
2. Is the price of this e ink photo frame higher than LCD/standard digital photo frames/other e-paper solutions?
This point is absolutely critical. Indeed, there is a difference from other hardware costs. But the primary pain point for ePaper does address the need for long-term display, instead of watching videos. Our premium value stems from: 1. Zero Blue Light; 2. Hassle-free Operation; 3. Seamless Integration.
3. Why not use an LCD or other digital photo frames, while an ePaper photo frame has slow refresh rates and limited color options?
LCDs excel as dynamic displays, while e-paper stands as the premier static display. Their application scenarios are entirely different. Adopting the Spectra 6 technology, it can be expressed as a color gamut reaching nearly 60,000, sufficient for reproducing photography and artworks. As for refresh rates, they are entirely adequate for scenarios focused on “appreciation” rather than “scrolling”. Precisely because of this, it achieves ultra-long battery life and clear visibility in sunlight, features unattainable by LCDs. This is why an increasing number of end-users are willing to pay for an experience that feels “like viewing a real painting”.
4. Can I change the image on the frame on different networks? For example, if I send a frame to my parents, can I refresh it remotely?
This e-ink photo frame features a more advanced, low-power processor that supports continuous Wi-Fi connectivity while maintaining minimal energy consumption. It incorporates dual-band 2.4/5GHz Wi-Fi technology. After simply connecting the e-ink photo frame to your home network, you can remotely send photos from anywhere on the planet using your smartphone, achieving near-instant refresh response times.
5. Does the e-paper photo frame automatically cycle through photos or only display one photo at a time? Can images be swiped offline?
You can customize all slideshow settings via the app. Set the interval time and choose sequential or random playback. For offline use, we provide a PC-based image processing tool. Configure your images and desired interval time to generate a resource package, then copy it to the TF card for an offline slideshow.
6. Does this e-ink photo frame support the latest E Ink Ripple refresh effect?
Currently, this 13.3-inch model does not support it due to limitations in the EPD module. This is currently unachievable for anyone. However, we will launch more models in other sizes recently, such as 10-inch, 25.3-inch, and 28.5-inch, to support Ripple refresh effect, and even more advanced refresh effects. These include smooth transition refreshes, image outline refreshes, and even customizable refreshes featuring your own brand logo.
7. What about the e ink photo frame market now? How can we prove there’s demand for this product?
In overseas premium crowdfunding platforms like Kickstarter, e-paper photo frames priced above $300 continue to achieve success, indicating that a group of consumers who recognize their value and are willing to pay exists and is growing. Increasing numbers of other digital photo frame manufacturers are entering the e ink photo frame market, while traditional frame manufacturers are also preparing to enter. The market landscape is opening up, making it a critical time to enter the e-ink photo frame now.
