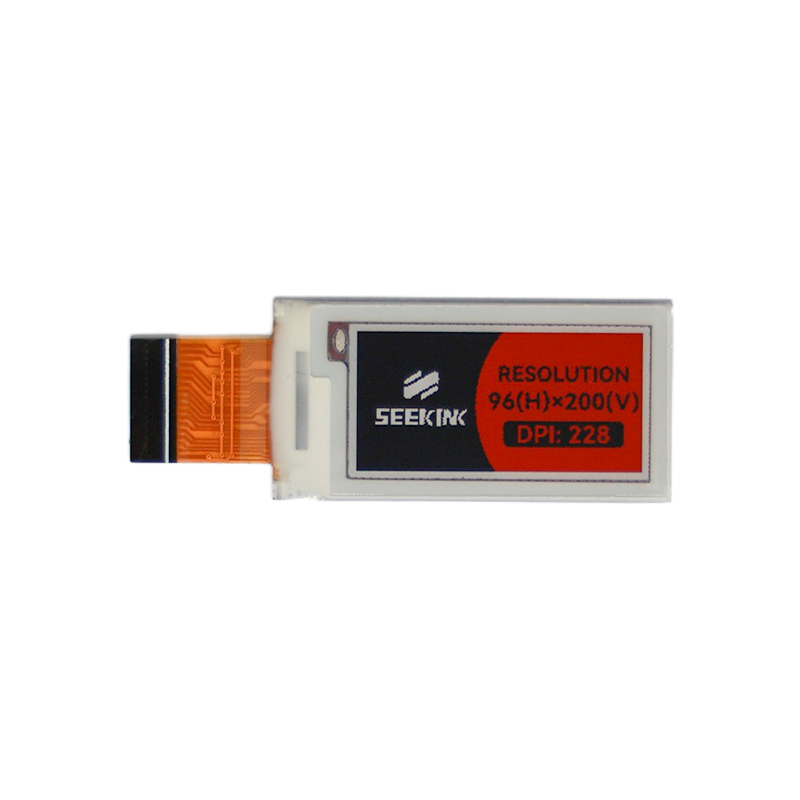

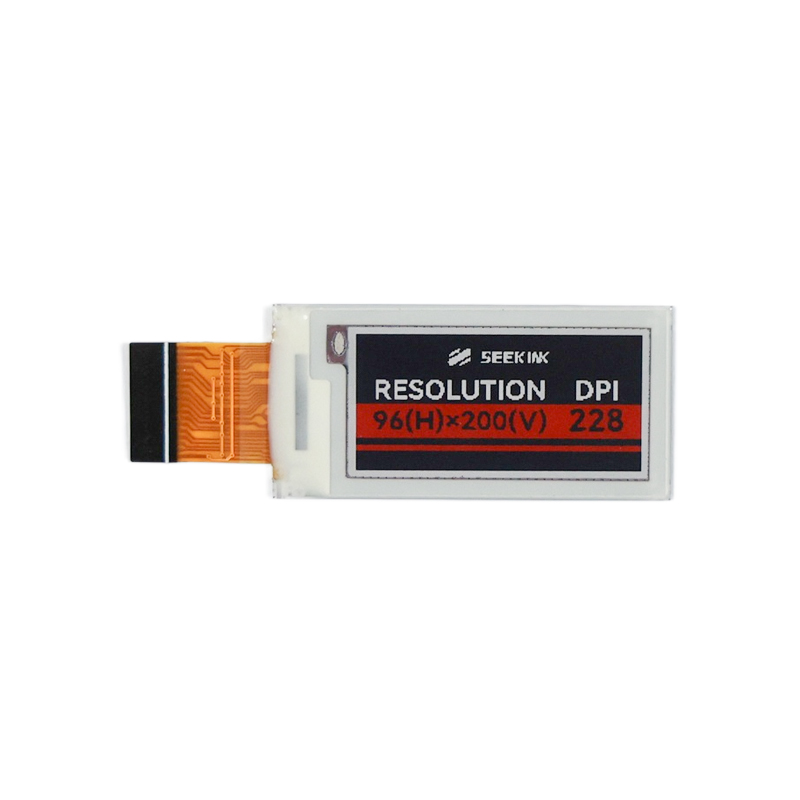

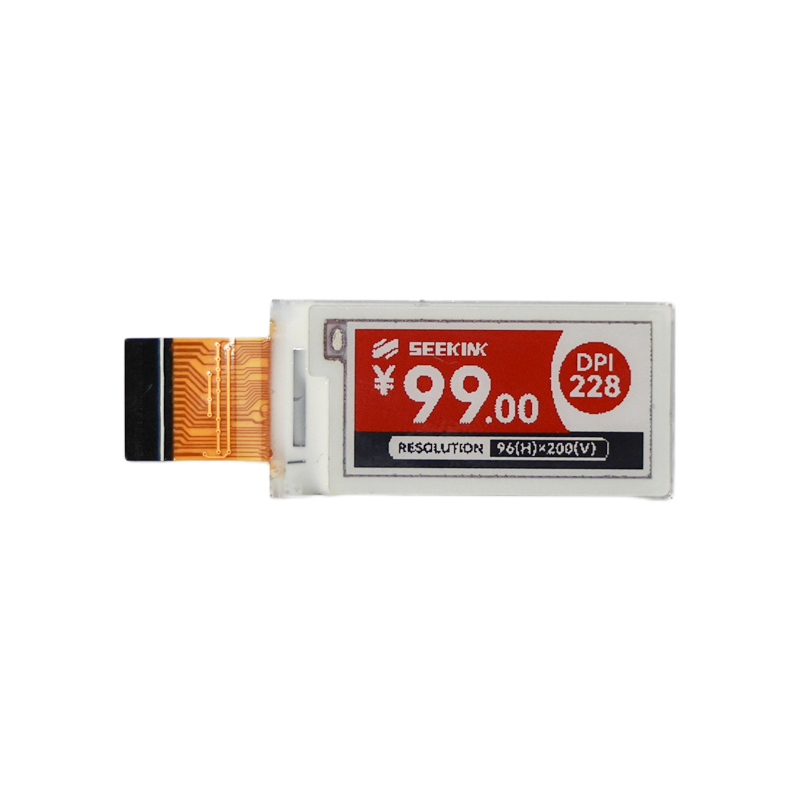

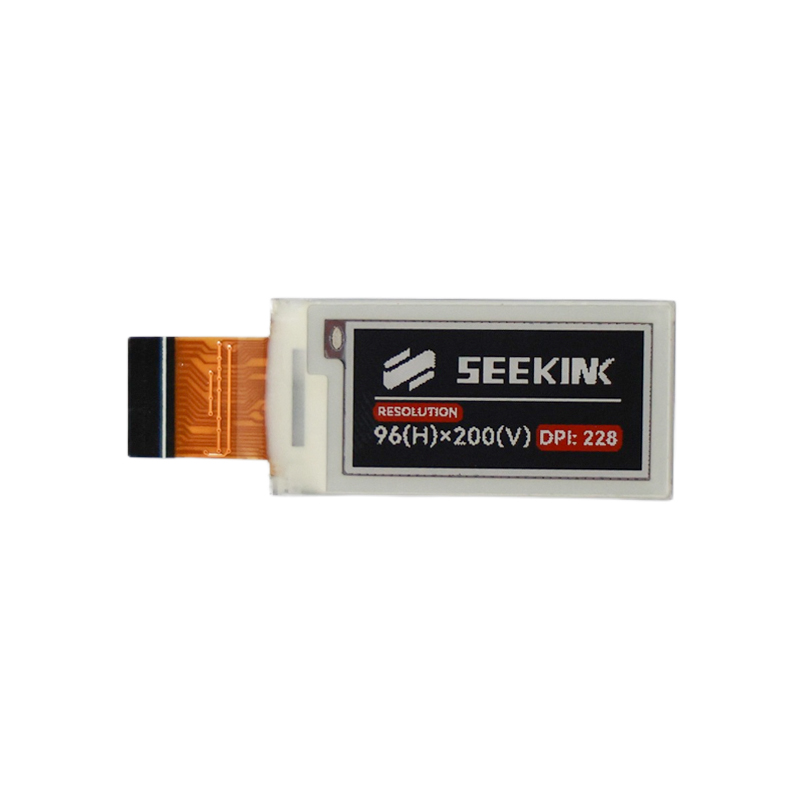

E0097A01 0.97 Inch Tri-color ePaper Display Module

0.97″ Mini Tri-color ePaper Display Module

Size

0.97 inch

Resolution

96 x 200

Eye-friendly

Protect your eyes from blue light.

Contrast

High Contrast

Color

Black/White/Red color options

Wide angle

178° ultra-wide angle

DPI

 228

Energy

Low-power consumption

The E0097A01 smallest e-ink display is an Active Matrix Electrophoretic Display (AMEPD) with an integrated interface and reference system design. It has a 0.97-inch active area and a resolution of 96×200 pixels, offering 1-bit black-and-white full display capabilities. The integrated circuit includes a gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC converter, SRAM, LUT, VCOM, and border, all supplied with each panel.

Features

• Clear and Readable:

With high contrast and high reflectance, our mini e-ink display ensures excellent readability, even in direct sunlight. Ideal for commercial use, it doesn’t require a backlight, making it energy-efficient and easy to read in any lighting.

• Wide Viewing Angle:

Enjoy ultra-wide viewing angles (over 170 degrees), ensuring clear visibility from any position. Ideal for shelf displays or recognizing content simultaneously.

• Low Power Consumption:

The display only consumes power when updating content, resulting in long battery life. Its deep sleep mode further conserves energy, making it ideal for battery-powered devices like smart labels and wearables.

• Durable:

At just 0.3mm thick, the small e-ink display is lightweight yet durable, with a hard-coat antiglare surface that resists impact and is easy to read in bright conditions.

• Customizable Design:

This mini epaper display supports landscape or portrait mode and can be shaped to fit your needs, with options for graphic overlays and cut-out shapes, offering a super-mini design for precision devices.

• Reliable in Harsh Conditions:

With a wide temperature range, the small e-ink display performs well in both hot and cold environments. The built-in temperature sensor ensures reliable operation under extreme conditions.

• Easy Integration:

With on-chip RAM and waveform storage, integration is so simple that it can reduce external component needs. The I2C interface allows easy communication with external sensors, saving on system costs.

• Eco-Friendly

The small e-ink display module is made with eco-friendly materials and operates in pure reflective mode, using no power to maintain static content.

0.97 Inch Mini ePaper Display Module Care & Warnings

Follow these guidelines to ensure the longevity and optimal performance of the 0.97-inch e-paper display module:

1. Keep the display flat or mounted on a rigid, curved support. Avoid continuous bending along the long axis.
2. Protect the small e-paper module from corrosive gases, such as acids and alkalis. Prevent exposure to static electricity and harsh environments.
3. When cleaning, apply IPA solvent only to the active area and the back of the glass.
4. Do not disassemble the mini e-ink display module, as this may cause damage and void the warranty.
5. Handle the fragile glass carefully, particularly the front surfaces. Always follow standard procedures for handling delicate electronics.
6. If the display breaks and materials leak, avoid touching them. If contact occurs, immediately wash the affected area with water and soap.

This 0.97-inch tri-coor EPD module is suitable for an electronic shelf label system and other electronic goods.
